MOTOR
- Share
A magnetic motor system includes a brushless motor with interdigitated permanent magnets longitudinally mounted on a rotor at equal radial positions, and stator windings to drive the rotor in response to pulses from a timer/driver, and stationary recapture windings to recover energy that would otherwise go to waste. One set of batteries is used to drive the motor through the timer/driver, and bridge rectifiers connected to the stationary recapture windings provide electrical current to charge a second set of batteries. The rotor shaft output provides kinetic energy to drive electrical generators, air compressors, etc. A shaft encoder connected to the rotor provides the information needed by the timer/driver to know which stator winding should be pulsed and with what polarity.

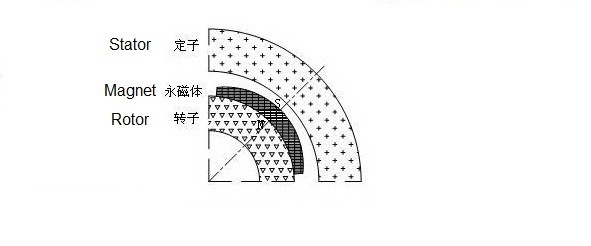

NdFeb magnet, Ceramic magnet and Alnico magnet are widely used.
Shape: Arc, Block
